Wedge Type HRC Fuses and Carrier

You are here:
Home /
Catalogue /
Wedge Type HRC Fuses and Carrier

SHIP Wedge Type HRC Fuses and Carriers have specially been designed and conforms to the latest BS standards. Special Pure Silver elements of low watt losses are custom built for specific customers. They have been designed for interrupting short circuits of more then 80kA.

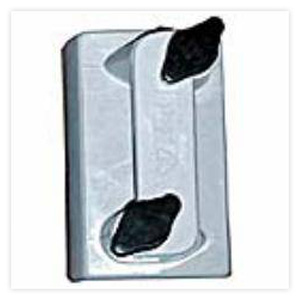

Wedge type HRC Fuse and Carrier

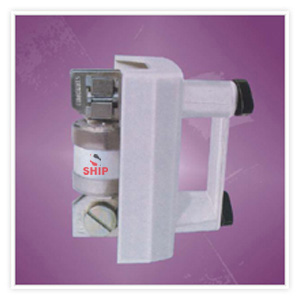

Wedge type HRC Fuse and Carrier

Construction and Features:

Entire range confirms BS / IEC standards

Low Cut-off current of HRC Fuses

Lower let through fault energy of HRC Fuses

Low power losses of the Fuses

Superior surge with stands capability

Interchangeability with all compatible brands

Special grade Copper / Silver elements used in HRC Fuses

Carrier housing made of glass fiber reinforced polyester (DMC) having high electrical and mechanical properties

Available in fixing centre 82mm or 92mm

Specification:

Wedge type Fuse Conforms to BS :88 Part-5 : 1988

Carriers Conforms to BS :88 Part-I / IEC 60269-1

Rating:

50A to 500A

Rated Voltage:

415V

Rated Insulation Voltage:

660V
